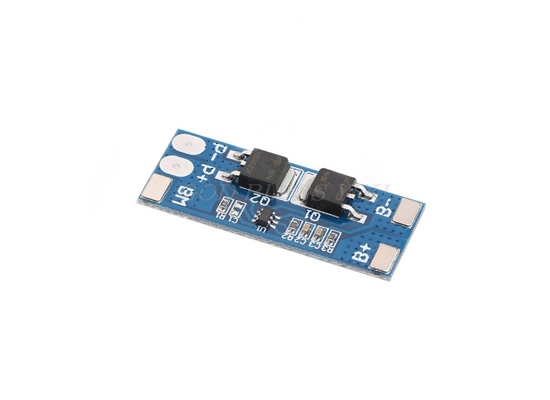

2S 10A 7.4V Lithium Iion battery BMS Protection Board

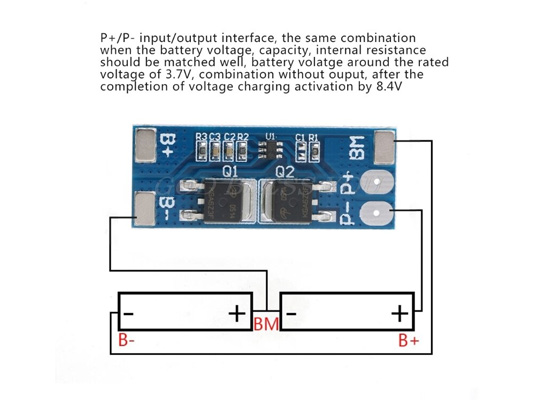

2S 10A 7.4V Lithium Iion battery BMS Protection Board Charging Voltage Range: 4.25-4.35V±0.05V Discharge Voltage Range: 2.5-3V±0.05V Maximum Working Current: 8A Conversion Efficiency: -40~ 50℃ Limit Instantaneous: 10A Storage Conditions: -40~ 80℃ Static Electricity: 50000H Internal Resistance: <300mΩ Short Circuit Protection: To protect, restore must charge Charging Voltage: 8.4V-9V P /P- input/output interface, the same combination when the battery voltage, capacity, internal resistance should be matched well, battery voltage around the rated voltage of 3.7V, combination without output, after the completion of voltage charging activation by 8.4V Caution: The protection board cannot be used for lithium iron phosphate batteries SKU: CE-20-00011 Category: BMS Tags: 2S 15A bms, 7.4v, 8.4 V, BMS, lithium*.*
