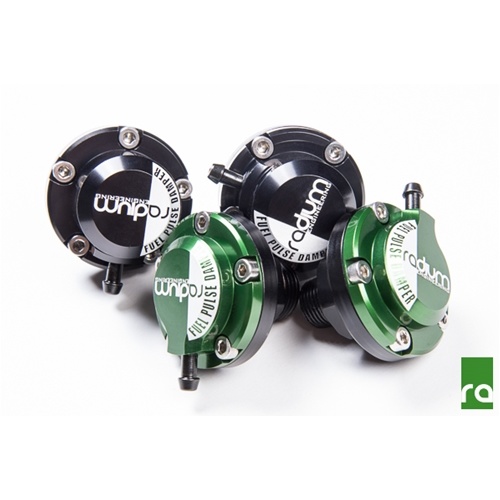

DescriptionThe opening and closing of fuel injectors creates pressure pulses in the fuel rail which can lead to unstable fuel pressure. In order to achieve a safe and consistent rail pressure, a fuel pulse damper (FPD) is often necessary. The FPD’s internal diaphragm will absorb oscillating pulses and stabilize fuel pressure. This correction can be measured throughout the RPM range and can often help idle surge, especially with high flow injectors. Furthermore, a fuel pulse damper can help solve erratic lean air/fuel ratio spikes, commonly experienced as “stumbling”, that are difficult to tune out.What makes Radium FPDs unique? Along with having the flexibilty of using common fittings, Radium Engineering FPD’s use a vacuum/boost reference port which allows for proper fuel pulse damper performance even at elevated fuel pressures. This becomes essential for boosted systems that use a 1:1 rising rate fuel pressure regulator.Features The anodized aluminum housing features two selectable threaded male fittings. The 8AN ORB (3/4″-16 UNF threads) version seals using a Viton O-ring while the 3/8″ NPT variation seals with the tapered pipe threads. The FPDs can be mounted at any possible angle including upside down. For best results, the damper should be mounted directly onto the fuel rail(s). This product is safe for use with all fuel types including alcohol blends such as E85. IncludedAnodized and laser engraved aluminum top, R=range or XR=extra rangeAnodized aluminum body with male threads, 8AN ORB or 3/8″ NPTStainless steel hardwareRubber vacuum hose, 4mm IDVacuum hose Y-fittingNOTE: This dampener requires the Radium Fuel Rail Kit
